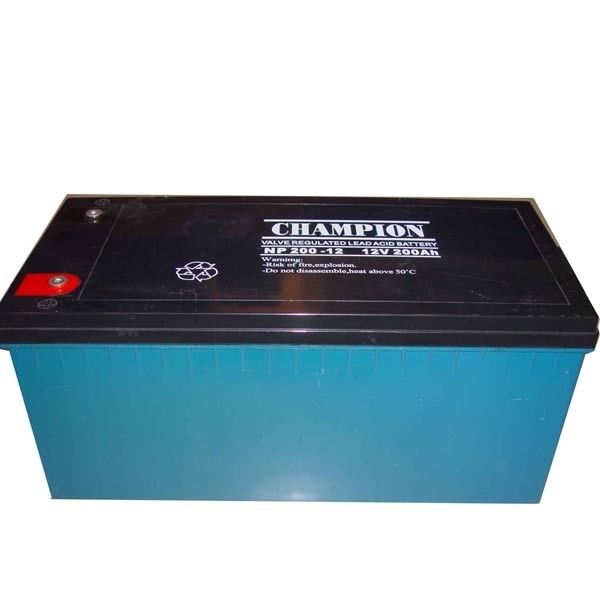

Champion AGM battery 12V200AH Lead Acid battery 12V200AH Storage battery manufacture

VRLA Battery NP Series 12V200AH

8 years design life; ABS Case

Size:522x240x218mm Weight:61.5kg

CHAMPION batteries are designed to be used at a wide range of products. They can be classified as either Cycle or Standby applications. Here are some examples of those common applications.

Cycle Use

Rechargeabe Lanterns

Power tools,lawn mowers, vacuum cleaners

Portable Audio & Video equipment

Portable computing equipment

Electric driven wheelchairs or bicycle
Toys and consumer electronics
Solar power devices
Standby use
Uninterruptible power supply
Emergency lighting system
Security system and fire alarm
Telecommunication systems
Communication equipments
Medical equipment

Feature
Sealed Construction and Leakproof
CHAMPION batteries have special construction and uses advanced sealing techniques to ensure leak-proof during normal operations.

Maintenance-free Operation
Refilling is not necessary to all CHAMPION sealed lead acid battery

Gas Gener ation
During float usage,over 99% of gases generated will be recombined inside the battery.

Operating in any position
With the advanced sealed and leakproof construction, CHAMPION batteries are able to operate in any position.

Low Self-Discharge
With our innovative technology, self-discharge rate of CHAMPION batteries can reach lower than 3% of rated capacity per month under normal operating temperature,enable CHAMPION batteries to be stored for a long period of time.

Safety Valve Regulated System
Equipped with a safety valve regulated system, CHAMPION batteries will release the excessive gas and will automatically be resealed to avoid over accumulation of gas inside the battery.

Long Service Life
CHAMPION batteries are designed to provide longer service to user. More than 1000 charge/discharge cycles can be expected, depending on the average depth of discharge. In float application, NP series batteries can service for 3 to 5 years and GM Series can serivce for 10 to 15 years.

Deep Discharge Recovery
Improved design enables the battery to have a better recovery after repeated deep discharges

No Memory Effect
There is no memory effect for a sealed lead acid battery after repetition usage or recharge

Wide Operating Temperature Range
CHAMPION batteries can be operated over a wide range of ambient temperatures.

Construction:
1.Terminal
2. Cover
3. Valve Cover
4. Safety Valve
5. Inter-cell connector
6.Negative Electrode
7.AGM Separator
8. Positive Electrode
9.ABS Container
